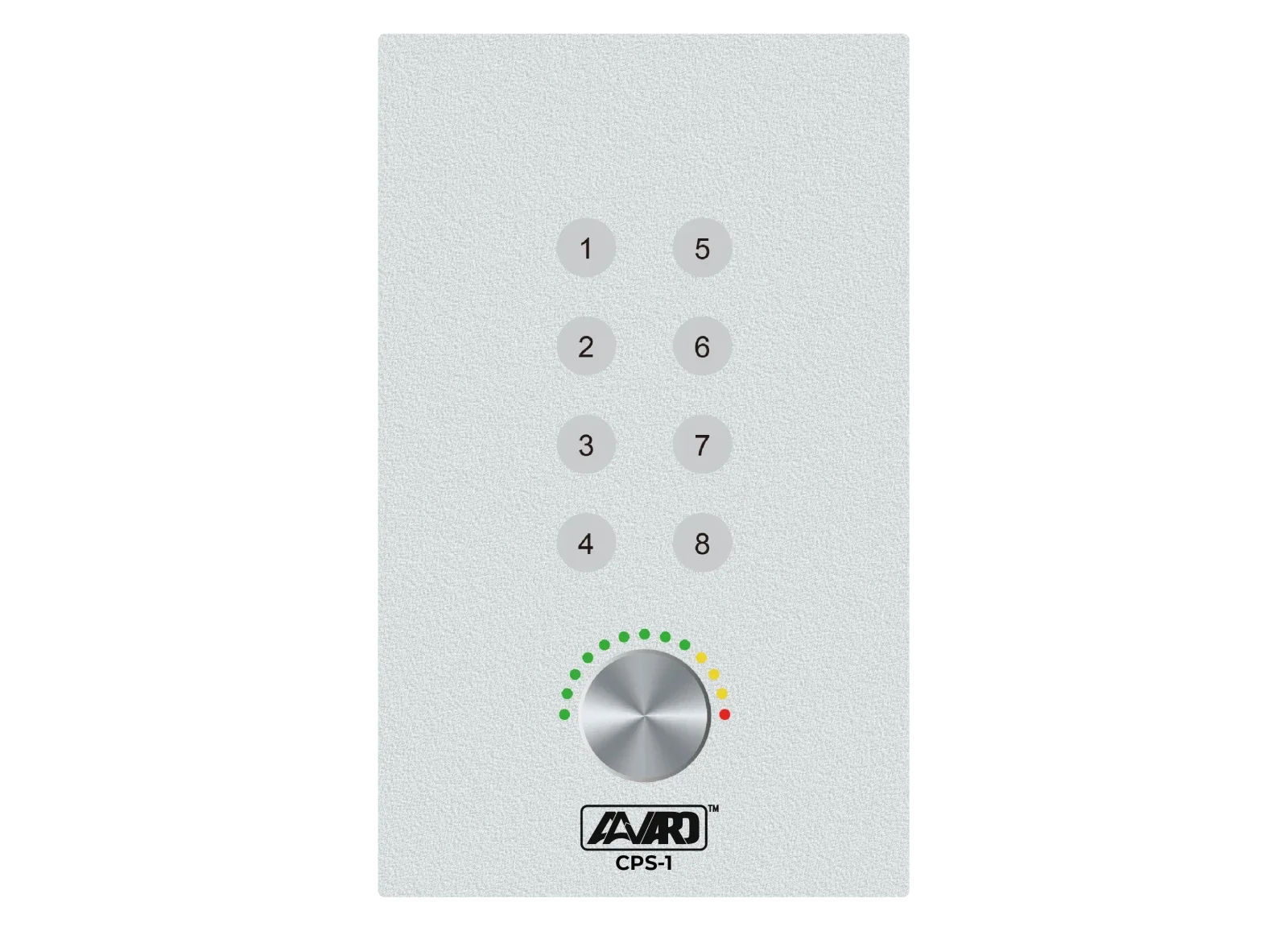

CPS-1

Features & Specifications

• Network-based control panel designed for integration with UMA series processors
• Control communication via UDP protocol for fast, lightweight command transmission
• Address configuration via standard TCP/IP networking
• Powered via PoE, eliminating the need for local power supplies
• Single RJ45 connection for power and network communication
• Supports signal transmission distances up to 100 meters over standard Ethernet cabling
• Ultra-low power consumption below 100 mW for efficient continuous operation
• Designed for flush wall installation using a standard in-wall back box
• Compatible with standard buried wall box dimensions of 155 × 85 × 57 mm
• Front panel constructed from sandblasted aluminium alloy for durability and a clean architectural finish
• Finished in white for seamless integration into education, corporate, and commercial interiors
• Compact faceplate dimensions of 156 × 96 mm
• Built-in AAVARO FLEX OS control interface for centralised AV routing and system management
• Engineered as part of the AAVARO control ecosystem for long-term stability and predictable system behaviour
