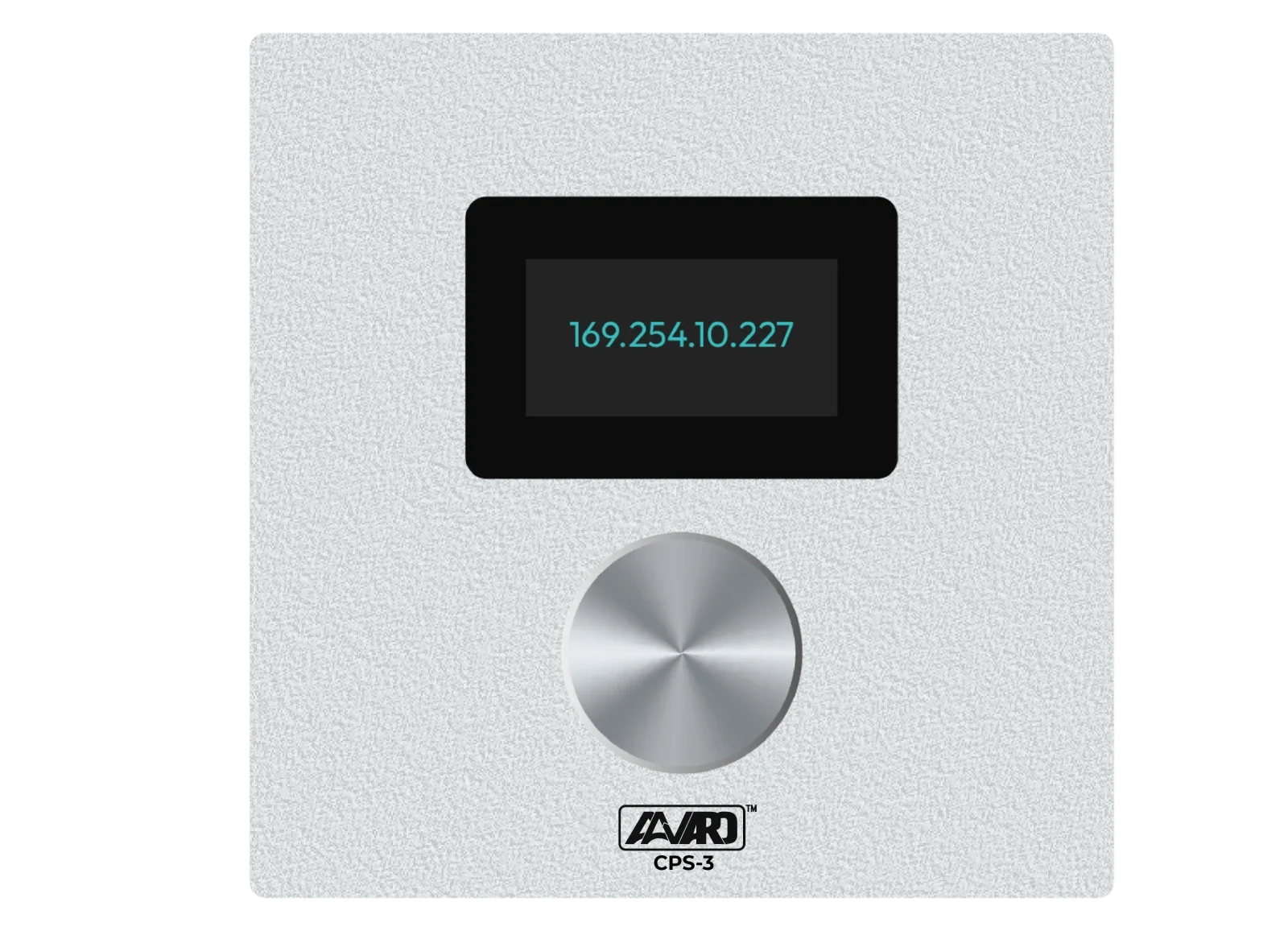

CPS-3

Features & Specifications

• Network-based control panel compatible with a full range of central audio and control processors
• Control communication via UDP protocol for fast, lightweight command execution
• Device addressing and configuration via standard TCP/IP networking
• Powered via PoE, eliminating the need for local power supplies
• Single RJ45 connection for power and network communication
• Supports signal transmission distances up to 100 meters over standard Ethernet cabling
• Ultra-low power consumption below 100 mW for continuous operation
• Supports up to 32 configurable menus for flexible system control layouts
• Capable of controlling basic audio functions and advanced logic-based events
• Functions include volume control, mute, preset recall, room combining, and custom control actions
• Integrated OLED display providing clear visual feedback and status indication
• Universal installation options supporting both in-wall and surface mounting
• Front panel constructed from sandblasted aluminium alloy for durability and architectural finish
• Finished in white for seamless integration into classrooms, meeting rooms, and commercial interiors
• Designed for intuitive user interaction while maintaining predictable behaviour within networked AV systems
• Built-in AAVARO FLEX OS control interface for centralised AV routing and system management
• Engineered as part of the AAVARO control ecosystem for long-term stability and predictable system behaviour
