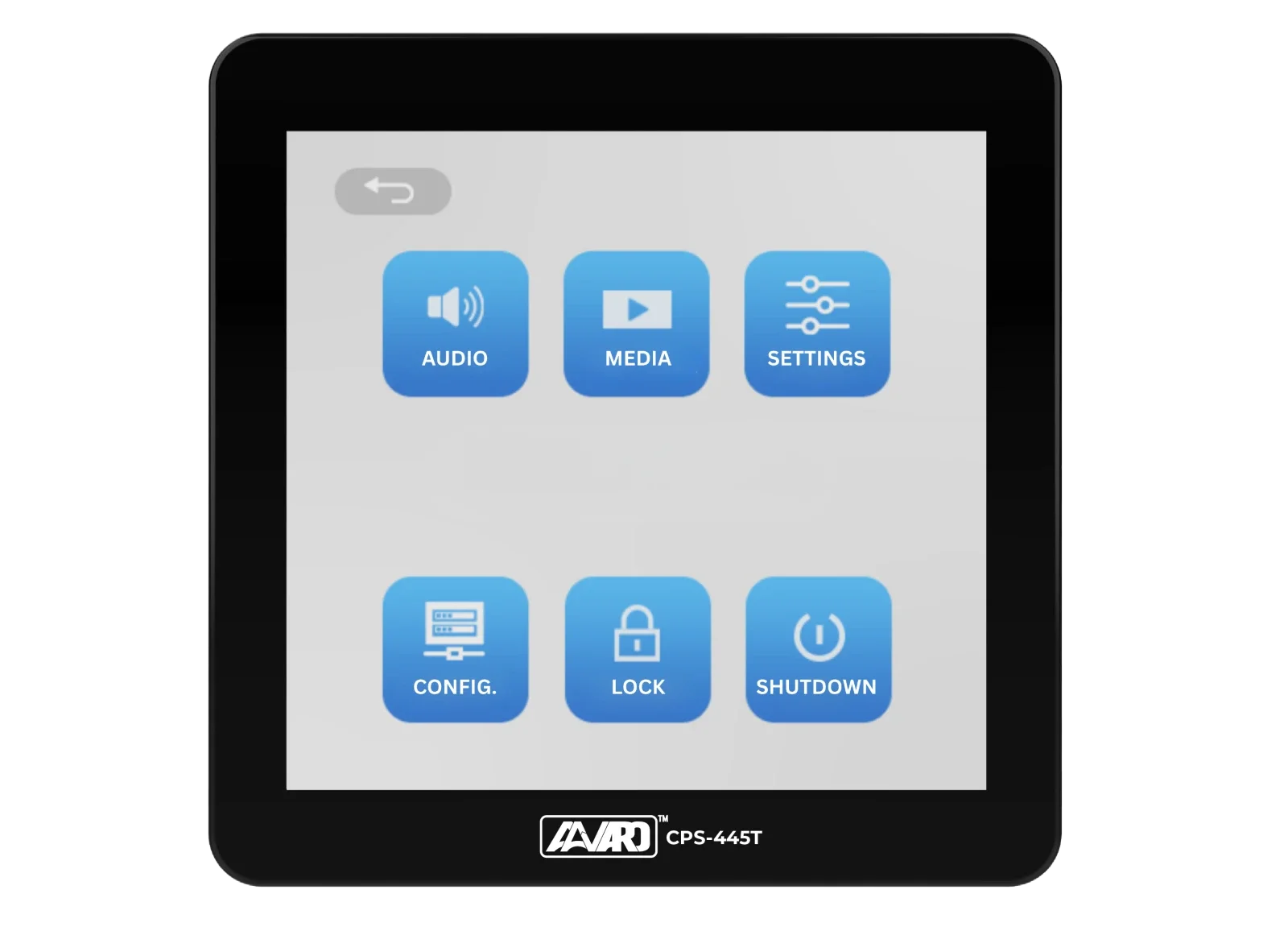

CPS-445T

Features & Specifications

Wired control panel designed for direct connection to central audio and control processors
Control communication via RS-485 protocol for stable, long-distance signal transmission
Supports control cable runs up to 100 meters
Powered via +12 V DC for simple and predictable power distribution
Connection via 4-pin Phoenix terminal for secure and professional wiring
Ultra-low power consumption below 100 mW
Compatible with HVP series column processors
Supports up to 32 configurable control functions
Capable of controlling volume, mute, scene recall, matrix switching, and central control functions
Suitable for both basic user interaction and more advanced system logic
Universal installation options supporting both in-wall and surface mounting
Compact form factor suitable for classrooms, meeting rooms, and public address control points
Front panel finished in grey for neutral architectural integration
Opening size (W × D × H): 82 × 18.1 × 78 mm
Product size (W × H): 88 × 88 mm
Built-in AAVARO FLEX OS control interface for centralised AV routing and system management
Engineered as part of the AAVARO control ecosystem for long-term stability and predictable system behaviour
