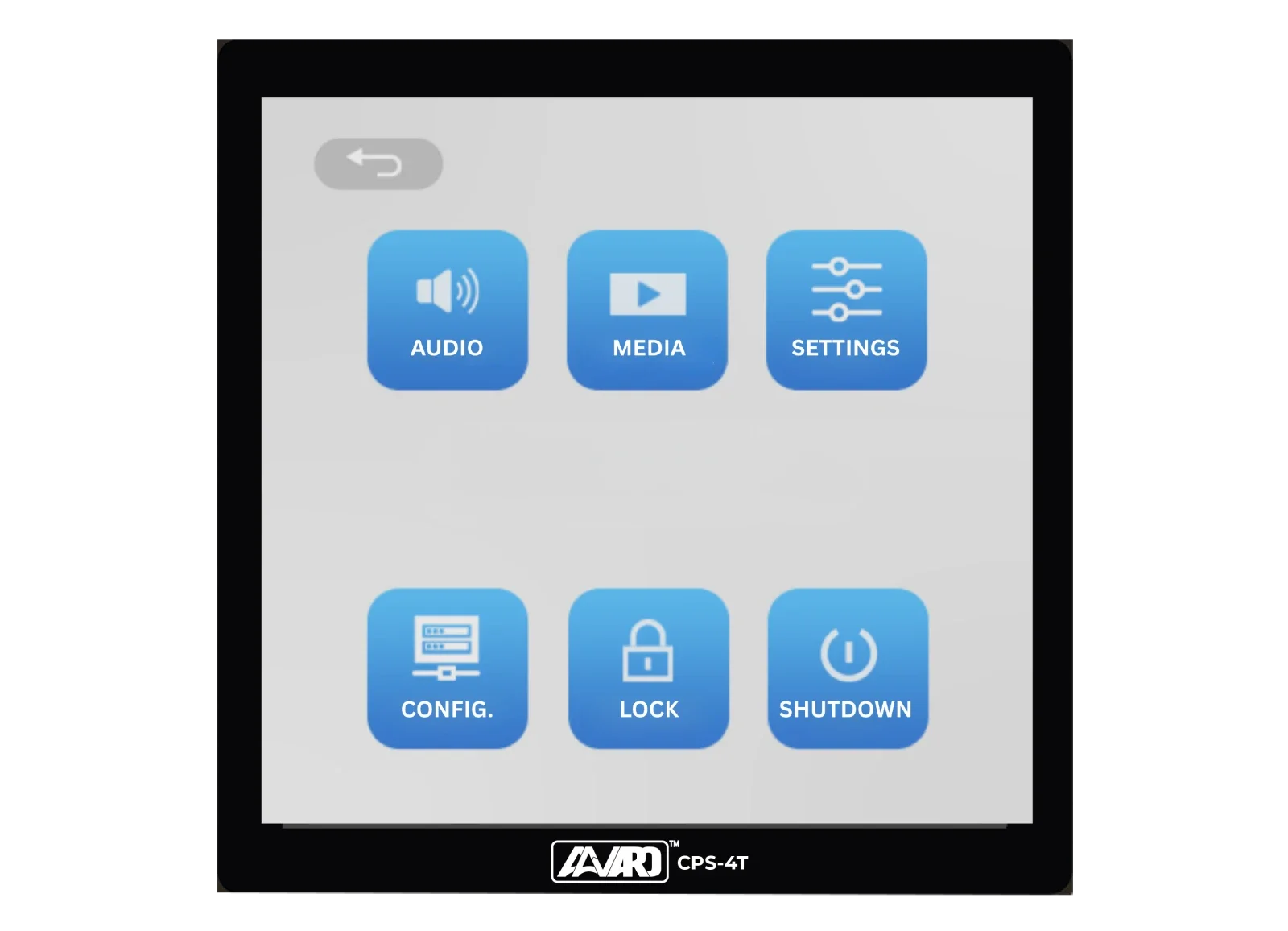

CPS-4T

Features & Specifications

• Network-based control panel compatible with a full range of central audio and control processors
• Control communication via UDP protocol for responsive, low-overhead command execution
• Device addressing and configuration via standard TCP/IP networking
• Dual power support via PoE or +12 V DC for flexible deployment scenarios
• Single RJ45 connection for network communication and PoE power delivery
• Supports signal transmission distances up to 100 meters over standard Ethernet cabling
• Ultra-low power consumption below 100 mW for efficient continuous operation
• Supports up to 32 configurable control functions
• Capable of controlling volume, mute, scene recall, matrix switching, and central control functions
• Designed to support both simple user interactions and more complex room or system logic
• Universal installation options supporting both in-wall and surface mounting
• Compact form factor suitable for classrooms, meeting rooms, and control points
• Front panel finished in grey for neutral architectural integration
• Opening size (W × D × H): 82 × 18.1 × 78 mm
• Product size (W × H): 88 × 88 mm
• Built-in AAVARO FLEX OS control interface for centralised AV routing and system management
• Engineered as part of the AAVARO control ecosystem for long-term stability and predictable system behaviour
