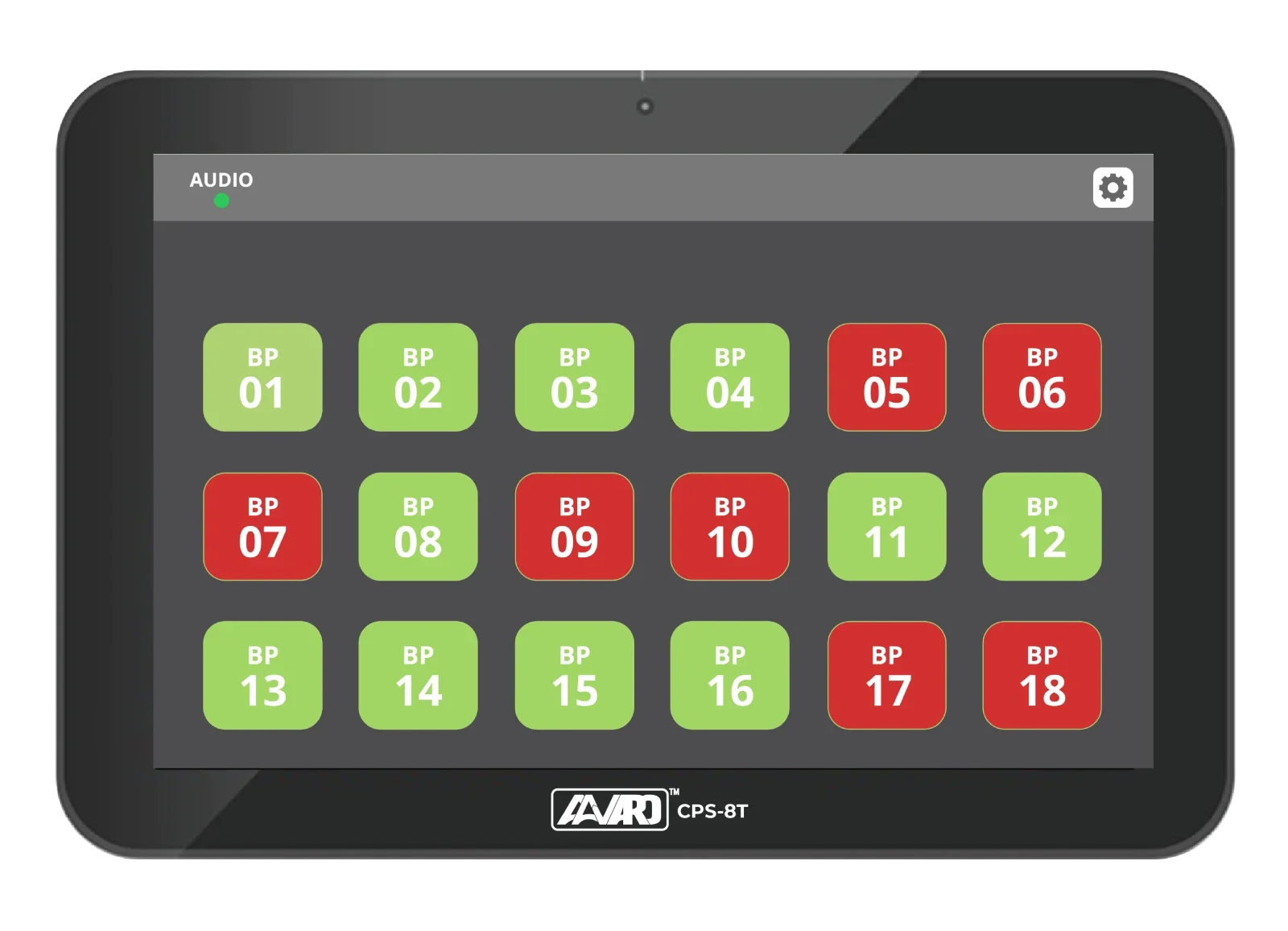

CPS-8T

Features & Specifications

• Network-based touch control panel designed for use within centralized AV control systems
• Control communication via UDP protocol for responsive and efficient command handling
• 8-inch IPS touchscreen providing wide viewing angles and consistent visual clarity
• Display resolution of 1280 × 800 with 16:9 aspect ratio
• Brightness rated at 250 cd/m² with contrast ratio of 800:1 for indoor environments
• Embedded Android 8.1 operating system optimised for dedicated control applications
• Powered by a quad-core Cortex-A17 processor (RockChip RK3288)
• 2 GB system memory with 16 GB internal storage for control interfaces and logic handling
• Dual power input support via PoE (IEEE 802.3at) or 12 V DC (1.5 A)
• Single RJ45 interface for network communication and PoE power delivery
• Designed for stable operation within managed AV networks
• Compact enclosure measuring 212.2 × 147.6 × 31 mm
• Lightweight construction with a net weight of 0.7 kg
• Finished in black for neutral integration into classrooms, meeting rooms, and control spaces
• Suitable for room control, source selection, volume adjustment, preset recall, and system monitoring
• Built-in AAVARO FLEX OS control interface for centralised AV routing and system management
• Engineered as part of the AAVARO control ecosystem for long-term stability and predictable system behaviour
