Weight: 3.72 kg
Dimensions: 540 × 340 × 86 mm
Digital Hybrid Processor
Digital Hybrid Processor

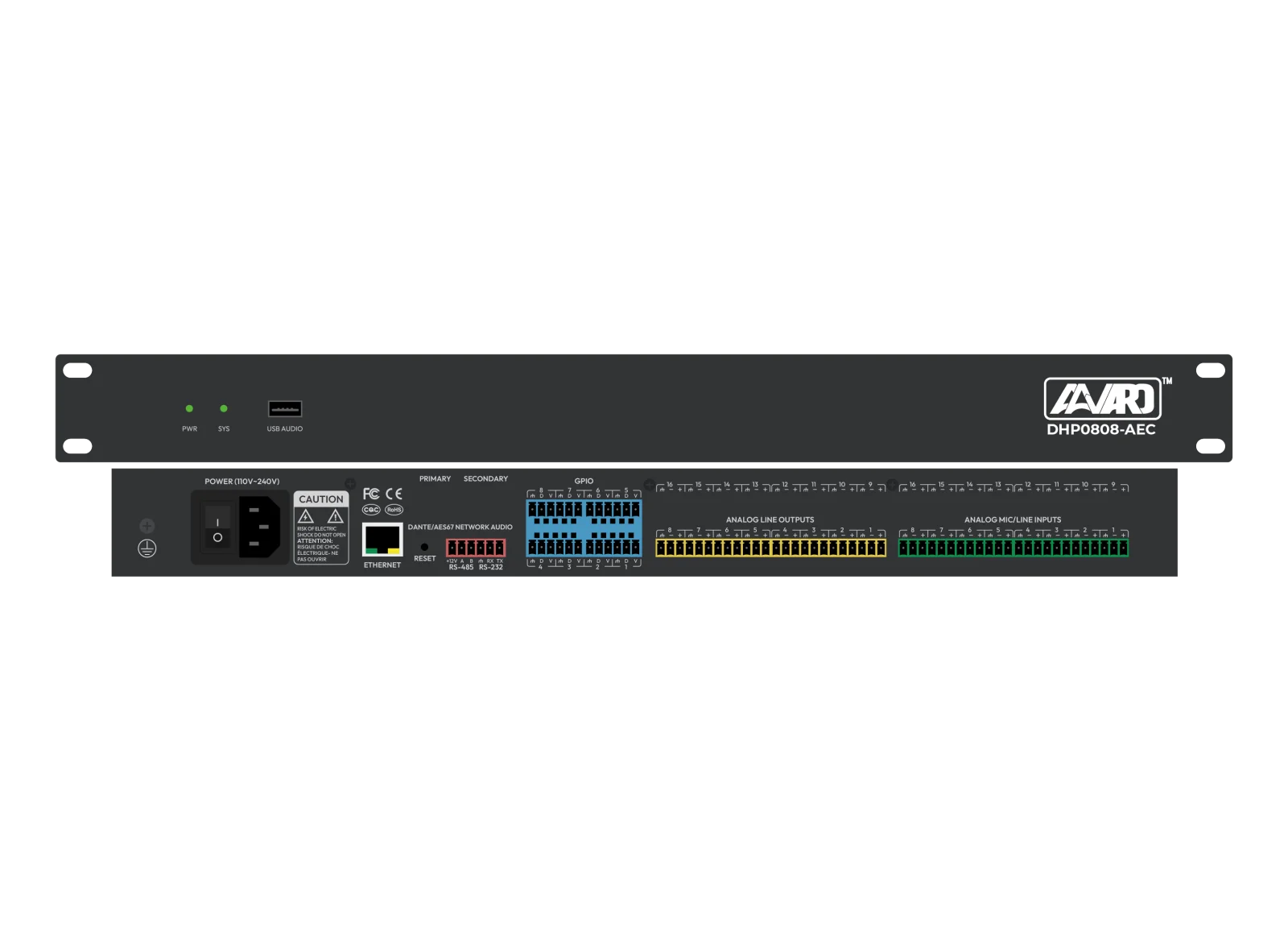

DHP0808-AEC
Features & Specifications
- Eight channels of analog audio input and eight channels of analog audio output
- Dual ADI SHARC 21489 DSP architecture operating at 450 MHz for high-capacity real-time processing
- DSP processing performance of 400 MIPS and 1.6 GFLOPS for stable, low-latency operation
- Fixed 48 kHz sampling rate with ±100 ppm clock accuracy, aligned with professional audio systems
- Total harmonic distortion plus noise below –95 dB at 17 dBu
- Input dynamic range of 113 dB for clean signal capture
- Output dynamic range of 113 dB for transparent audio reproduction
- Built-in one-input, one-output USB audio interface for direct computer connectivity
