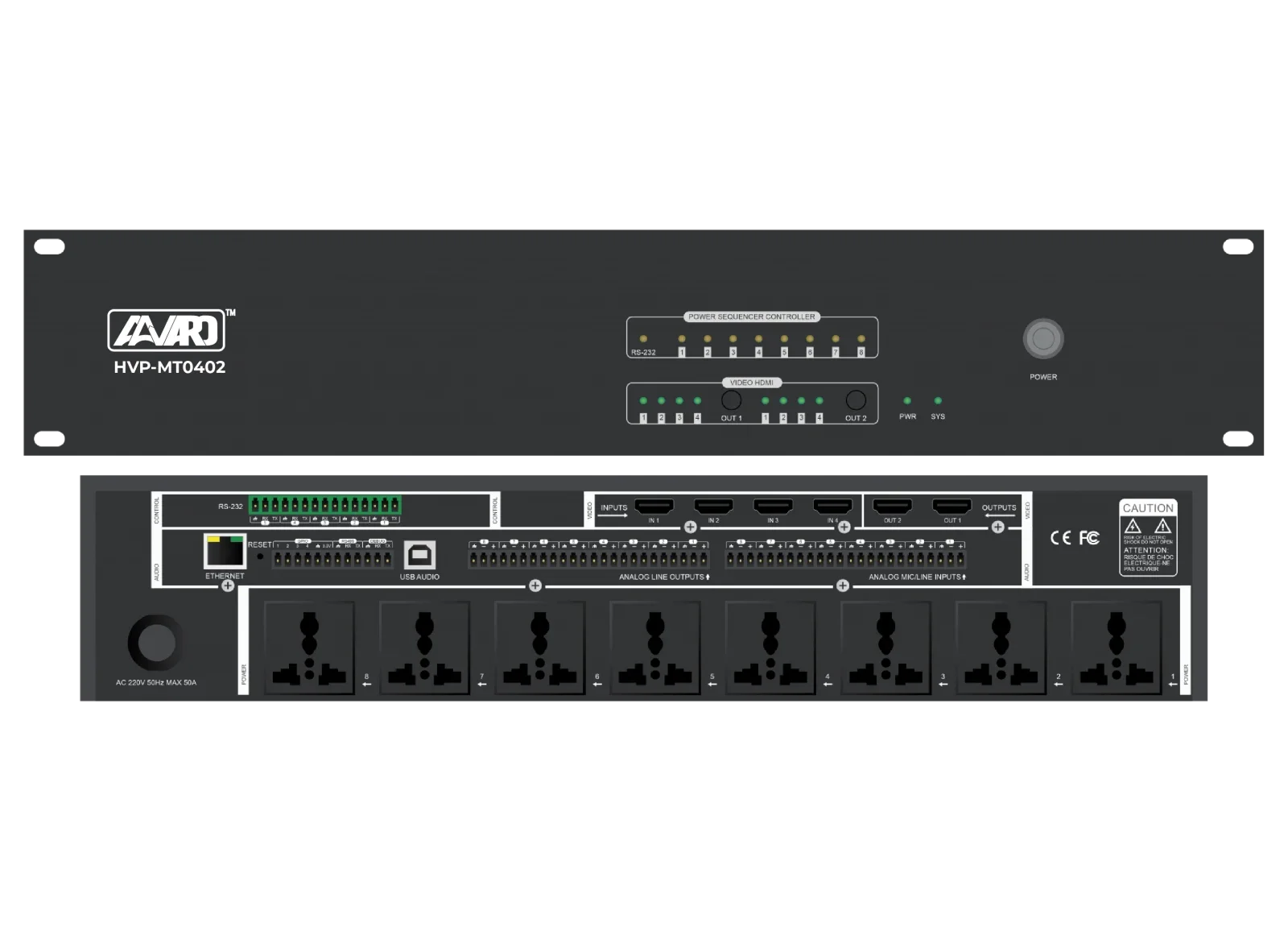

HVP-MT0402

Features & Specifications

• Supports HDMI 2.0 with HDCP 2.2, HDCP 1.4, and DVI 1.0 compatibility for broad source and display integration
• 4 HDMI inputs and 2 HDMI outputs supporting flexible video routing and distribution
• Supports video resolutions up to 4K2K @ 60 Hz with YCbCr 4:4:4 for high-quality presentation and conferencing visuals
• 8 channels of analog audio input and eight channels of analog audio output for multi-microphone and multi-zone audio systems
• Powered by an ADI SHARC 21489 DSP operating at 450 MHz, delivering 400 MIPS and 1.6 GFLOPS of real-time processing performance
• Fixed 48 kHz sampling rate with ±100 ppm clock accuracy, aligned with professional audio ecosystems
• High audio performance with THD+N below –100 dB at 4 dBu
• Input dynamic range of 110 dB and output dynamic range of 112 dB for clean signal capture and reproduction
• Built-in USB audio interface enabling direct connection to conferencing and playback systems without external converters
• Integrated control interfaces including four GPIO ports, one RS-232 port, and one RS-485 port for system control and automation
• Designed for hybrid AV environments where analog audio, HDMI video, USB conferencing, and control systems must operate as a single, coordinated platform
