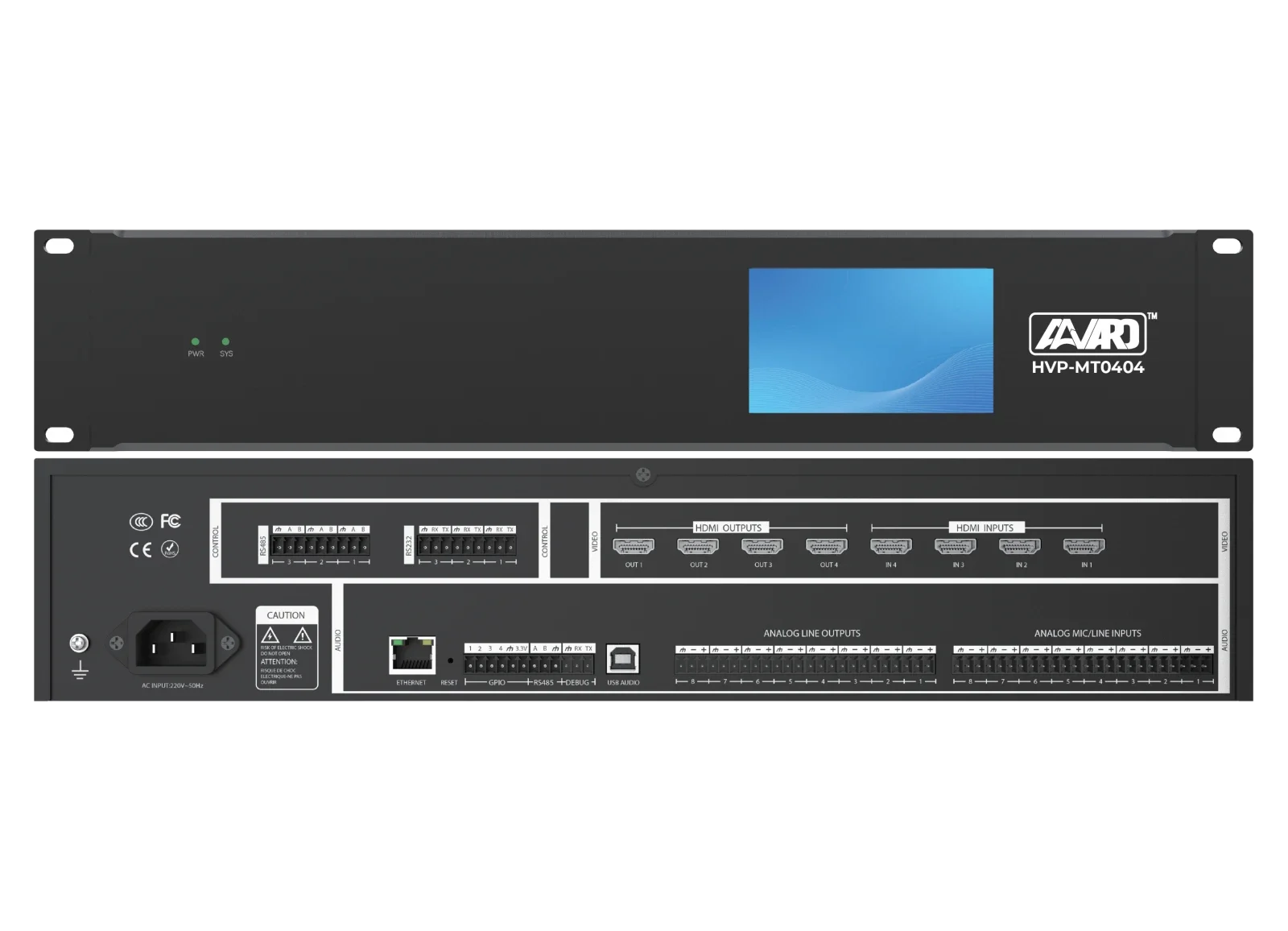

HVP-MT0404

Features & Specifications

• Compatible with HDMI 2.0, HDCP 2.2, HDCP 1.4, and DVI 1.0 for broad source and display interoperability
• 4 HDMI inputs and 4 HDMI outputs configured as a seamless 4×4 HDMI matrix
• Supports high-resolution video switching with stable, glitch-free source transitions
• 8 channels of analog audio input and eight channels of analog audio output for multi-microphone and multi-zone audio systems
• Powered by an ADI SHARC 21489 DSP with 40-bit floating-point processing for accurate, real-time audio computation
• Operates at a fixed 48 kHz sampling rate with 24-bit resolution, aligned with professional audio workflows
• Wide input gain range from 0 to 48 dB, supporting line-level sources, dynamic microphones, and condenser microphones
• Per-channel +48 V phantom power (10 mA max) for fixed-installation microphone support
• Frequency response of ±0.5 dB from 20 Hz to 20 kHz for transparent audio reproduction
• Maximum output level of +18 dBu, suitable for professional downstream equipment
• Total harmonic distortion plus noise below –92 dB at 17 dBu
• Input and output dynamic range of 110 dB for clean signal capture and delivery
• Integrated control interfaces including six configurable RS-232 / RS-485 ports for centralised system control and automation
• Designed for hybrid AV environments where audio processing, HDMI matrix switching, and external control systems must operate as a unified platform
